You all are probably familiar with mad4hws. Many, many moons ago he reached out to us to help him attach a Volkswagen TDI engine to his Patrol transmission. This is our bread and butter so of course we agreed. A couple moments later
... we spawned the adapter kit ... from raw billet aluminum we present to you in all its shiny glory, the first TDI adapter kit specifically designed for the Patrol 60 series transmission.https://tdconversions.com/en-ca/collect ... dapter-kit
Some of you may be familiar with our company, TD Conversions. We specialize in making TDI adapter kits and love to take on these custom projects! This project was fairly straight forward but we had a few road blocks that upset the design process. The very large 14.5" flywheel and choosing an appropriate starter motor with the correct pitch, offset, and cranking power proved to be a challenge. We ultimately succeeded and provided mad4hws with the critical piece to complete his engine swap.
We are proud to offer this great product to the Patrol community! Mad4hws desires a round of applause for all his hard work and patience working with us to get this project completed. Thanks!
Check out the kit details below.

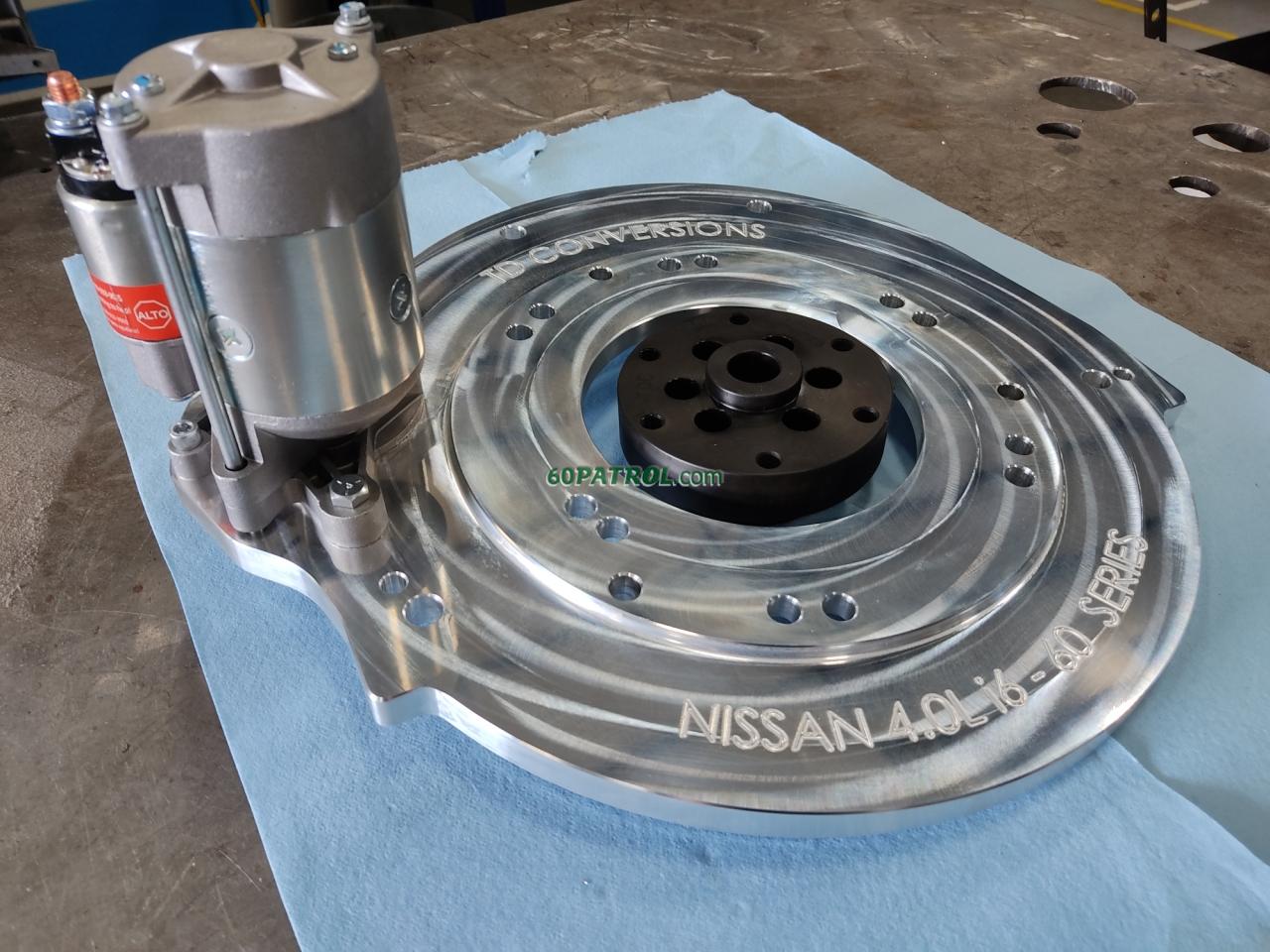

This is the transmission adapter plate with a Ford 6.4L V8 diesel starter motor.
Here is an exploded view of the overall kit assembly, this is an example from our TDI to Jeep 3.6L transmission adapter kit.
The engine block bolts to the engine plate, then the transmission plate bolts to the engine plate. The engine can be clocked to three different angles 0, 10, and 15 degrees, transmission stays stationary. We use a solid billet steel crank adapter to get offset the flywheel back to its original OEM crank offset position.
Here is a pile of information to digest about our kits.
VIDEOS: First startup video of the kit attached to a Volkswagen TDI (BHW code) engine.
https://youtube.com/shorts/51gbKmeScXw?feature=share
Transmission plate preview:
https://youtube.com/shorts/7a6v5PEhFQc?feature=share
Description
This adapter plate kit allows you to replace your Nissan 4.0L 60 Series (Patrol G60) engine with any 4 cylinder Volkswagen/Audi engine. The most commonly used engine is the VW TDI (ALH, BEW, BHW, CJAA). All VW/Audi 4 cylinder engines have the same bellhousing bolt pattern and crank hub. This means you can install any 4 cylinder gas or diesel engine made by VW/Audi using this kit.
PRODUCT FEATURES
Our kit has numerous features that set us apart from the competition.
PREMIUM BILLET ALLUMINUM ADAPTER PLATES. We do not skimp on quality, and only use high quality 6061 Aluminum billets. Our tempered 6061 is far superior to the cheap cast non-tempered aluminum adapter plates typically seen with cheaper adapter kits. Our billets undergo a tempering process of heat treating and artificial aging to achieve the perfect strength and toughness for our application.
EXTRA FIRE WALL CLEARANCE. Our 2 inch thick adapter moves the TDI engine forward 2 inches from the transmission bellhousing. This gives you extra fire wall clearance for the TDI vacuum pump and coolant pipe. The transmission remains in the original position, keeping the shifter in the factory position for most vehicle conversions.
HIGH PERFORMANCE CRANK ADAPTER. Our nitride case hardened alloy steel crank adapters are designed for high performance applications. Rated at 800 ft-lbs of torque, we set the bar high and make sure our parts are not the limiting factor in your build. Nitriding is a low temp, low distortion heat treating process that significantly improves fatigue strength of the metal. Crank adapters undergo significant stress cycles, making them a critical failure point. This is not where you want to cut corners on quality materials or design. Shockingly, our competitor's kits only offer aluminum or untreated steel crank adapters. Is it cheap and dirty, does it make the wheels turn at the end of the day, sure! Are they engineered to be the best? Not a chance!
3.0kW HIGH TORQUE STARTER MOTOR. Starter motors are a vital part of any adapter kit. This kit utilizes a 3.0kW Ford V8 Diesel Power Stroke starter motor for unbeatable power to size ratio, reliability, off the shelf availability, and superior cold weather start up performance. The starter is compact with ample room for downpipe clearance.
MULTIPLE ENGINE CLOCKING POSITIONS. Our 2 plate system allows the engine to be clocked at 0° (vertical), 10°, and 15° degrees for fine tuning engine clearances. The transmission stays stationary while the engine rotates towards the passenger frame rail.
Fitment information:
This kit was tested on a Nissan 4.0L 60 Series (Patrol G60) 1962-1969, BUT may work with gen 3 patrols or other vehicles that utilize the same engine and transmission.
Compatible Engine codes:
Nissan 4.0L 60 Series 1962-1969 (North America)
Nissan, Datsun, EBro - 4.0L 60 Series 1959-1980 (Globally) ***We cannot guarantee fitment for these vehicles, please verify your engine/transmission is the same as the North American 4.0L 60 Series 1962-1969***
***If your vehicle is not on this list, please cross reference and perform your own research. Other similar vehicle models may also be compatible. ***
HOW DOES THE ADAPTER WORK?
Our adapters make the back of the TDI engine physically resemble the back of the original engine it is replacing. No drilling or welding required, no custom flywheels, or shortened input shafts. Any transmission that originally bolted to your engine will work with this adapter kit.
WHY ARE THERE TWO ADAPTER PLATES?
Our two plate system allows you to clock/rotate the engine while keeping the transmission in the stock orientation. There are three different clocking positions: 0 degrees, 10 degrees, or 15 degrees.
DO I NEED A FLYWHEEL OR FLEXPLATE?
Our TDI kits utilize the original flywheel or flexplate from the original engine being replaced. You will not need the VW TDI flywheel, clutch, torque converter, or starter motor.
HOW ACCURATE IS THE TRANSMISSION ALIGNMENT?
We use our Aerospace Grade CMM to pull all the dimensions off the original engine. It allows us to precisely reverse engineer the bolt pattern down to 0.0001". Incorrect alignment will cause premature failure of the pilot and input shaft bearings, excessive clutch plate wear, and internal gear binding.
HOW EASY IS A DIESEL CONVERSION?
-It depends on which vehicle you want to convert and how much mechanical experience you have.
-If you approach the conversion in stages you can get the vehicle driving in less than 5 days.
-Stage 1, do your research first, and lay out all your required tasks.
-Stage 2, focus on getting the engine in and driving with very minimal changes to engine and wiring harness.
-Stage 3, after you confirm the engine runs and drives, start your performance upgrades, custom wiring harness, gauges, engine rebuilds, etc.. This method reduces the number of variables you introduce to the project, and significantly increases your conversion success. Too many people make too many changes right from the start or try to make it perfect the first time round. Take it slow, minimize the number of changes all at once, and you will have a successful conversion!
-You will need regular mechanic tools, engine hoist, welding machine, basic fabrication knowledge, some electrical knowledge, and beverages.
DOES TDCONVERSIONS DO CONVERSIONS ON CUSTOMER VEHICLES?
-Not currently. We sell the conversion kits to get your engine into the vehicle and bolted to the transmission.

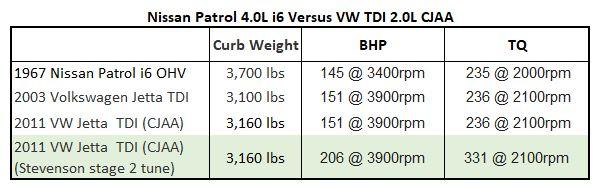

WHAT IS THE COST TO CONVERT?
-Conversion cost depends on the vehicle you are converting and the performance level you want.
-The TDI comes stock ranging from about 90hp up to about 150hp. The 1.9L and 2.0L can easily achieve 175+ hp and 300+ ft-lbs with only a turbo upgrade, injector nozzles, and a tune. Upgraded turbos start at $600, nozzles $250 plus installation/calibration, and ECM tunes $400.
-Our adapter kits are $1199 USD with free shipping.
-A used 1.9L TDI engines can be purchased for $500, and up to $1500 for the newer common rail 2.0L TDI.
-Add in some motor mounts, a little fabricating with your favorite electric metal glue gun and you could be on the road for under $2000.
AM I GOING TO SAVE MONEY BY CONVERTING?
-Yes the diesel should get at least double the fuel mileage compared to your gasoline engine.
-Diesel is typically cheaper than gasoline, plus the increased MPG nets you excellent savings and eventually pays for your swap.
-But lets be on honest, you are doing this because you want to save the polar bears and love sexy anodized parts.
DO AUTOMATIC TRANSMISSIONS WORK FOR CONVERSIONS?
-Yes an automatic transmission will work with our adapter kits.
-You will need a standalone TCM controller for your specific transmission. These controllers are highly tunable and have manual shift modes.
-Be aware of your torque converters stall speed and full lock RPM. You may need to purchase a new converter that better suits the TDI.
CAN A FULL SIZE TRUCK BE CONVERTED?
-Most certainly yes! For TDI conversions into half ton trucks we would recommend at least a Stage 4 Malone tune or equivalent with supporting mods (turbo, injectors, etc..). The little TDI can easily achieve 315ft-lbs+ with a larger turbo, injector nozzles, and a tune. In comparison, a Chevy 1500 with the 5.3L V8 is 320hp / 335 ft-lbs. It won't be a rocket ship but it is possible!
https://tdconversions.com/en-ca/collect ... dapter-kit
Can't wait for mad4hws to finish this project and see it running.
