Gasket Scans

[faux40]

Here are a couple more gasket scans:

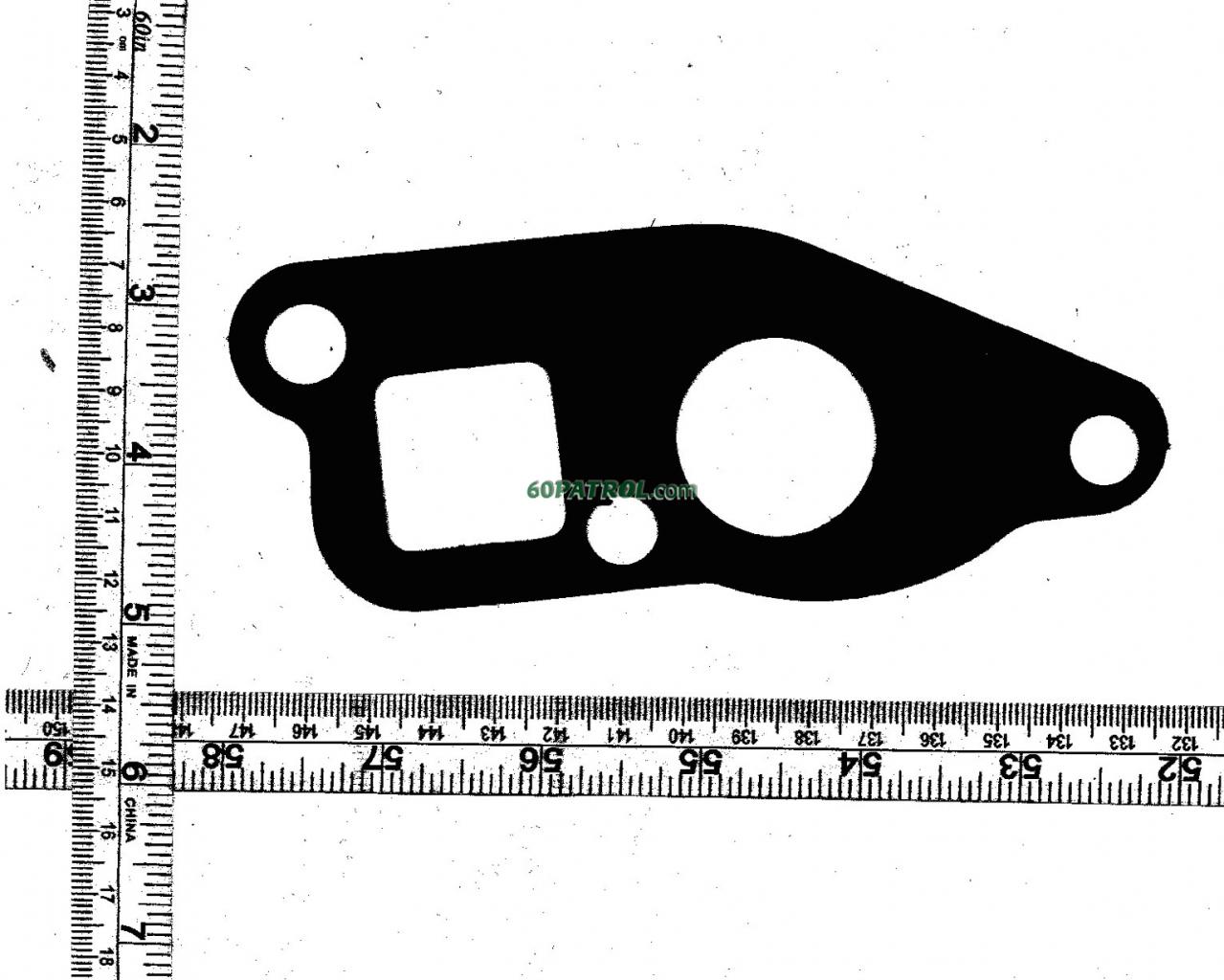

The water pump to head gasket:


The oil filter housing to block gasket:

[EricB]

Here is the illustrator (AI) file for the traced gaskets...
(sorry i thought i had uploaded this a while back already...)

Depending on the resolution of the different scans there was definitely some room for interpretation
I would suggest printing out a set on paper, hand cutting them out, and comparing / contrasting with what the actual part requires to see how close or not the traces are

-e

[r1lark]

Not sure if this is where we are putting gasket scans, but if it's not, hopefully River will let me know.

This is a NOS 14005-58000 gasket, taken from a NOS full engine gasket set. It is the gasket that goes between the intake and exhaust manifolds where they mate together.

Note that five (5) squares of the graph paper equal one (1) inch. (FYI: It's odd, but when I print out the .pdf on my printer, the printer wants to put a small margin around the edge, so the printed copy of the gasket comes out slightly smaller than full size. I had to experiment by increasing the print size over 100% until I get a printed copy that has the correct scale.)

14005-58000 Gasket Scanned.pdf

[r1lark]

NOS p/n 20017-87861 exhaust manifold to exhaust tube gasket scan. Note that five (5) squares of the graph paper equal one (1) inch.

20017-87861 Gasket Scanned.pdf
